300V UL Power Cord Cable SJT 18AWG 5C ABC Conductors OD10.0mm PVC Black

WCH Cable Industrial Co., Ltd.
Contact Now

300V UL Power Cord Cable SJT 18AWG 5C ABC Conductors OD10.0mm PVC Black

Brand Name : WCH Cable

Model Number : SJT 18AWG 5C OD10.0 BLK

Certification : UL & CUL Certificate

Place of Origin : Dongguan, China

MOQ : 5000 meters

Price : USD0.2321

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000000 meters per month

Delivery Time : 9 days for ready goods

Packaging Details : 305 meters per reel

UL Type : SJT

Application : Power Cord Cable

Conductor Gauge : 18AWG

Diameter : 10.00mm

Jacket Material : PVC

Colour : Black

Contact Now

300V UL Power Cord Cable SJT 18AWG 5C ABC Conductors OD10.0mm PVC Black

300V UL Power Cord Cable SJT 18AWG 5C ABC Conductors OD10.0mm PVC Black

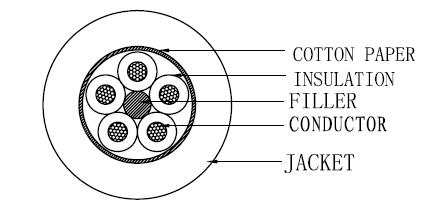

Conductor Specification (AWG) 18
Section Area (mm²) 0.8244
Material   Bare Stranded Copper
Configuration (mm) AS41/0.16±0.007
Conductor Quantity   5C
Insulation Average Thickness (mm) 0.77
Minimum Thickness (mm) 0.65
Over Diameter (mm) 2.80±0.10
Material   PVC (RoHS)
Colour   Black, White, Red, Yellow, Blue
Assembly Filler   15000D*2
Cotton Papper (mm) 0.025
Jacket Average Thickness (mm) 1.17
Minimum Thickness (mm) 0.93
Overall Diameter (mm) 10.00±0.30
Material   PVC (RoHS)
Colour   Black
Electrical
Capability
Rated Temperature (℃) 105
Rated Voltage (V) 300
Conductor Resistance (Ω/KM 20℃) 21.80
Insulation Resistance (MΩ/KM 20℃) 10
Flammability Fire Retardance   VW-1
    CUL FT1
Approval UL Style Number   SJT
Environmental Standard   Lead Free
    RoHS & Reach Compliant

300V UL Power Cord Cable SJT 18AWG 5C ABC Conductors OD10.0mm PVC Black
