Abrasion Resistant Elastomer Jacketed Retractable Spiral Cable UL20057, UL20327, UL20618

Product Categories
WCH Cable Industrial Co., Ltd.
Contact Now

Abrasion Resistant Elastomer Jacketed Retractable Spiral Cable UL20057, UL20327, UL20618

Brand Name : WCH Cable

Model Number : UL20057

Certification : UL Certificate

Place of Origin : Dongguan, China

MOQ : 100pcs

Price : USD 0.213 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000000 pcs per month

Delivery Time : 9 days for ready goods

Packaging Details : 100 pcs per carton box

Feature : Abrasion Resistant

Conductor : High Purity Copper Wire

UL Style Number : UL20057

Gauge : 24AWG

Application : Data Trasmission

Standard : UL758, CSA22.2

Contact Now

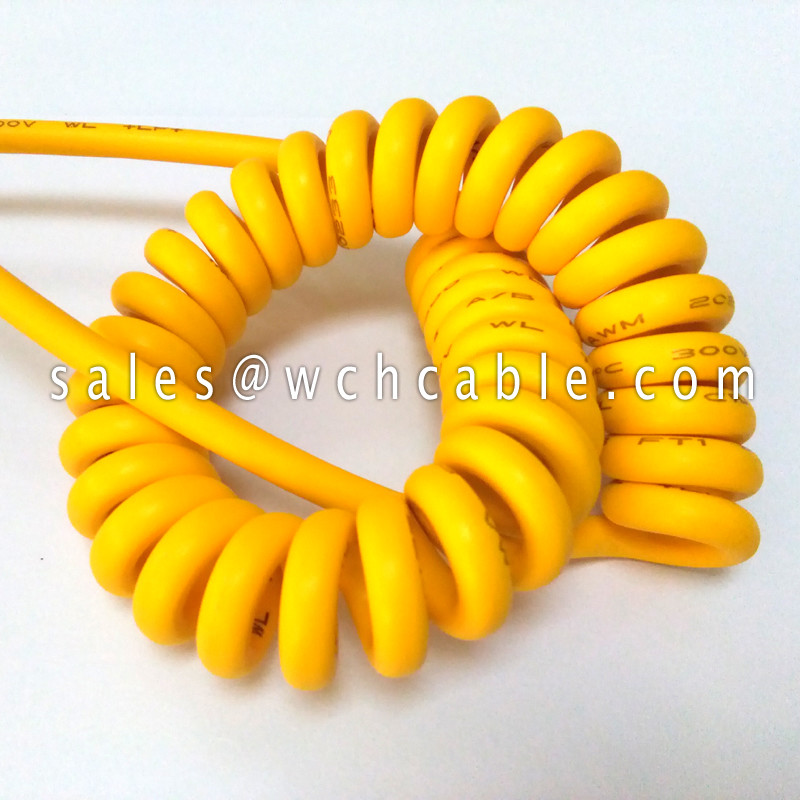

Abrasion Resistant Elastomer Jacketed Retractable Spiral Cable UL20057, UL20327, UL20618

Abrasion Resistant Elastomer Jacketed Retractable Spiral Cable UL20057, UL20327, UL20618

Spiral Cable

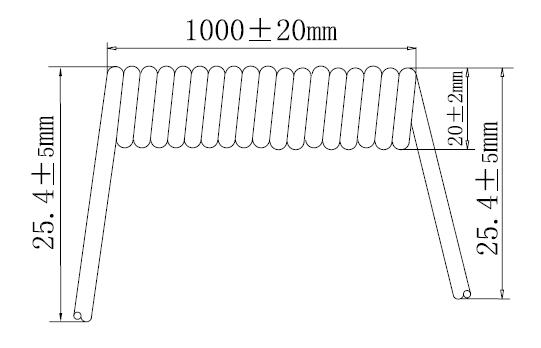

Construction		 Spiral Length (unexpanded) (mm) 1000
Straight Ends (mm/mm) 25.4/25.4
Extension Ratio 　 1:3.8
Spiral Outer Ø (mm) 20
Tail Direction 　 90 degree
End Treatment Optional Cut Flat, Stripped/Tinned
Electrical
Capability		 Working Voltage (V) 300
Temperature Range (°C) 105
Test Voltage (V) 2000/3000
Nominal Voltage (V) 300
Conductor Resistance (Ω/KM at 20°C) 94.2
Insulation Resistance (MΩ/KM at 20°C) 100
Standard & Use UL Style Number Optional Per UL20057, UL20327, UL20618
CUL Standard 　 II A
Flammability 　 FT1, VW-1
Raw Cable
Construction		 Conductor Size (AWG) 24
Insulation Material 　 PP (RoHS)
Insulation Diameter (mm) 1.30
Conductor Quantity 　 4 Cores
Assembly 　 Stranded
Overall Diameter (mm) 5.10
Jacket Material 　 TPE (RoHS)
Surface Effect 　 Matt Yellow

The demonstrated parameters for reference only. Please consult our customer service to customize any other parameter you demand.
