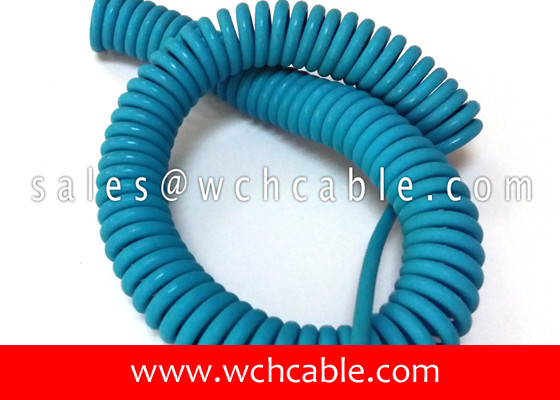

UL20430 HVAC Control Spiral Cable 105C 600V

Name: UL20430 HVAC Control Spiral Cable 105C 600V
Brand: WCH Cable
Price: 0.336 USD

Brand Name : WCH Cable

Model Number : UL20430

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 200 pcs

Price : USD0.336 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100,000pcs per week

Delivery Time : 9 days for ready goods

Packaging Details : 200 pcs per box

Conductor : High purity copper wire

Rated Temperature : 105 Deg C

Insulation : AWM Appliant Material

Rated Voltage : 600V

Jacket Material : Thermoplastic Polyurethane TPU

Executed Standard : UL758, UL20430

Application : HVAC Control

Style Number : UL20430

Contact Now

UL20430 HVAC Control Spiral Cable 105C 600V

Conductor: High purity copper wire, tinned or bare, stranded or solid.
Insulation: Quality materials complying with AWM standard.
Screen Shield: Foil, spiral shield, copper braiding, optional.
Jacket Material: Thermoplastic Polyurethane TPU.
Standard: Appliance Wiring Material UL758.
Rated Temperature: 105 deg C.
Rated Voltage: 600V.
Flammability: UL VW-1, CUL FT1, FT2 passed.
Uniform insulation thickness for smooth stripping.
Other approvals: Cul, CSA / Canadian Standards Association.
Application: HVAC Control.
Origin: Dongguan, China.

Style Number	Core Quantity	Copper Conductor		Insulation Thickness	Insulation Diameter	Jacket Thickness	Overall Diameter	Conductor Resistance
Style Number	Core Quantity	AWG	No/mm	mm	mm	mm	mm	Ω/KM
UL20430	2C	30	7/0.100	0.76	1.90	1.15	6.70	381.00
	2C	28	7/0.127	0.76	2.00	1.15	7.00	239.00
	2C	26	7/0.16	0.76	2.10	1.15	7.10	150.00
	2C	24	11/0.16	0.76	2.20	1.15	7.30	94.20
	2C	22	17/0.16	0.76	2.40	1.15	7.70	59.40
	2C	20	21/0.178	0.76	2.50	1.15	8.10	36.70
	2C	18	34/0.178	0.76	2.80	1.15	8.70	23.20
	2C	16	26/0.25	0.76	3.10	1.15	10.90	14.60
	3C	30	7/0.100	0.76	1.90	1.15	8.60	381.00
	3C	28	7/0.127	0.76	2.00	1.15	8.80	239.00
	3C	26	7/0.16	0.76	2.10	1.15	9.00	150.00
	3C	24	11/0.16	0.76	2.20	1.15	9.20	94.20
	3C	22	17/0.16	0.76	2.40	1.15	9.60	59.40
	3C	20	21/0.178	0.76	2.50	1.15	10.10	36.70
	3C	18	34/0.178	0.76	2.80	1.15	10.70	23.20
	4C	30	7/0.100	0.76	1.90	1.15	8.80	381.00
	4C	28	7/0.127	0.76	2.00	1.15	9.00	239.00
	4C	26	7/0.16	0.76	2.10	1.15	9.30	150.00
	4C	24	11/0.16	0.76	2.20	1.15	9.60	94.20
	4C	22	17/0.16	0.76	2.40	1.15	10.00	59.40
	4C	20	21/0.178	0.76	2.50	1.15	10.50	36.70
	5C	30	7/0.100	0.76	1.90	1.15	9.10	381.00
	5C	28	7/0.127	0.76	2.00	1.15	9.40	239.00
	5C	26	7/0.16	0.76	2.10	1.15	9.50	150.00
	5C	24	11/0.16	0.76	2.20	1.15	9.90	94.20
	5C	22	17/0.16	0.76	2.40	1.15	10.60	59.40
	6C	30	7/0.100	0.76	1.90	1.15	9.50	381.00
	6C	28	7/0.127	0.76	2.00	1.15	9.80	239.00
	6C	26	7/0.16	0.76	2.10	1.15	10.10	150.00
	6C	24	11/0.16	0.76	2.20	1.15	10.40	94.20

UL20430 HVAC Control Spiral Cable 105C 600V

Tag: UL20430, spiral cable

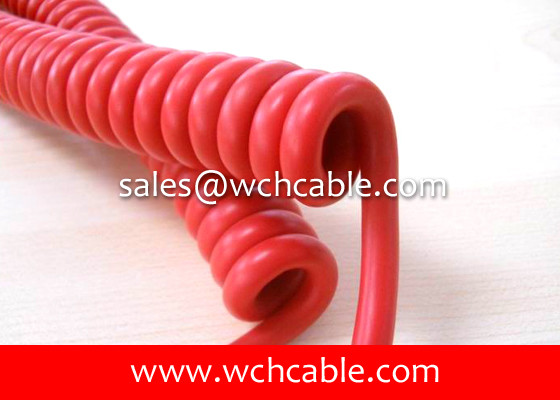

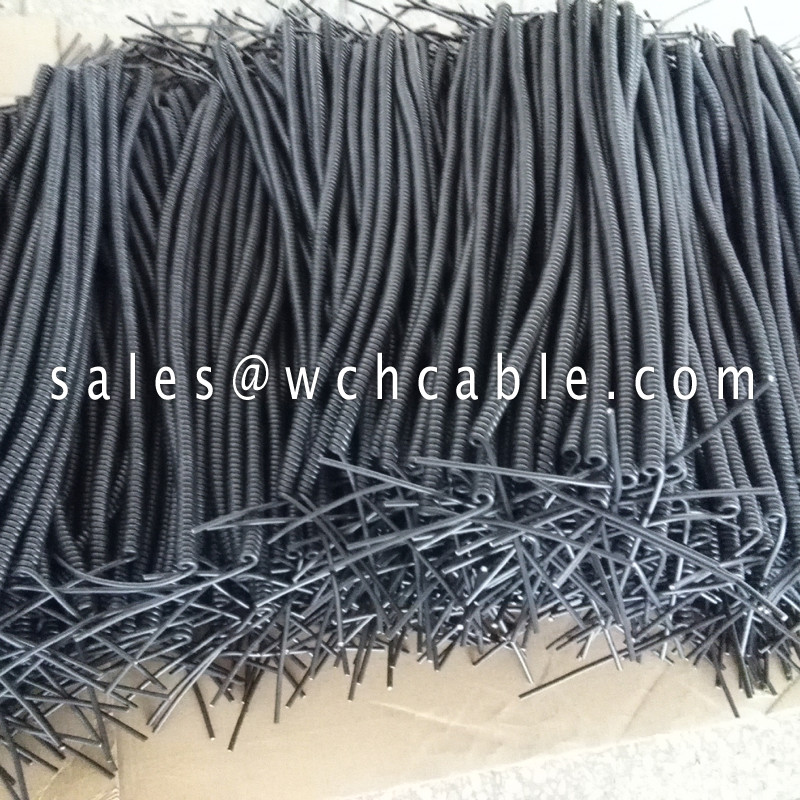

UL20430 HVAC Control Spiral Cable 105C 600V Images
