UL21143 Lighting Industry LSZH Cable 80C 600V

Brand Name : WCH Cable

Model Number : UL21143

Certification : UL Certificate

Place of Origin : Dongguan, China

MOQ : 1220 meters

Price : USD 0.15 per meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000000 meter per Month

Delivery Time : 9 days for ready goods

Packaging Details : 305 meters per reel

Style Number : UL21143

Application : Light industry

Jacket Type : FRPE, FR-PE

Conductor Type : High purity copper wires

Rated Temperature : 80°C

Jacket Material : Flame Retardant Polyethylene

Rated Voltage : 600V

Manufacturer : WCH Cable Industrial Co., Ltd.

Contact Now

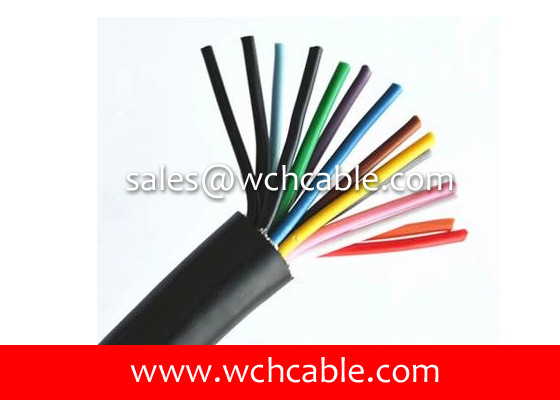

UL21143 Lighting Industry LSZH Cable 80C 600V

Conductor: High Purity of Copper Wire, Stranded or Solid.

Insulation: HDPE, XLPE, FRPE, PP

Jacket: Extruded FRPE

Rated Temperature: 80C

Rated Voltage: 600V

Flame Retardant Grade: VW-1, FT-1, FT-2

Executed Standard: Appliance Wiring Material UL758.

Style Number Conductor Quantity Conductor Size Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL21143 2C 30 7/0.100 0.23 0.80 0.76 3.60 381.00
2C 28 7/0.127 0.23 0.90 0.76 3.90 239.00
2C 26 7/0.16 0.23 1.00 0.76 4.00 150.00
2C 24 11/0.16 0.23 1.10 0.76 4.20 94.20
2C 22 17/0.16 0.23 1.30 0.76 4.60 59.40
2C 20 21/0.178 0.23 1.50 0.76 5.00 36.70
2C 18 34/0.178 0.23 1.80 0.76 5.60 23.20
2C 16 26/0.25 0.23 2.00 0.76 7.80 14.60
3C 30 7/0.100 0.23 0.80 0.76 5.50 381.00
3C 28 7/0.127 0.23 0.90 0.76 5.70 239.00
3C 26 7/0.16 0.23 1.00 0.76 5.90 150.00
3C 24 11/0.16 0.23 1.10 0.76 6.10 94.20
3C 22 17/0.16 0.23 1.30 0.76 6.50 59.40
3C 20 21/0.178 0.23 1.50 0.76 7.00 36.70
3C 18 34/0.178 0.23 1.80 0.76 7.60 23.20
4C 30 7/0.100 0.23 0.80 0.76 5.70 381.00
4C 28 7/0.127 0.23 0.90 0.76 5.90 239.00
4C 26 7/0.16 0.23 1.00 0.76 6.20 150.00
4C 24 11/0.16 0.23 1.10 0.76 6.50 94.20
4C 22 17/0.16 0.23 1.30 0.76 6.90 59.40
4C 20 21/0.178 0.23 1.50 0.76 7.40 36.70
5C 30 7/0.100 0.23 0.80 0.76 6.00 381.00
5C 28 7/0.127 0.23 0.90 0.76 6.30 239.00
5C 26 7/0.16 0.23 1.00 0.76 6.40 150.00
5C 24 11/0.16 0.23 1.10 0.76 6.80 94.20
5C 22 17/0.16 0.23 1.30 0.76 7.40 59.40
6C 30 7/0.100 0.23 0.80 0.76 6.40 381.00
6C 28 7/0.127 0.23 0.90 0.76 6.70 239.00
6C 26 7/0.16 0.23 1.00 0.76 7.00 150.00
6C 24 11/0.16 0.23 1.10 0.76 7.30 94.20


UL21143 Lighting Industry LSZH Cable 80C 600V

UL21143 Lighting Industry LSZH Cable 80C 600V

UL21143 Lighting Industry LSZH Cable 80C 600V

UL21143 Lighting Industry LSZH Cable 80C 600V

UL21143 Lighting Industry LSZH Cable 80C 600V

UL21143 Lighting Industry LSZH Cable 80C 600V

UL21143 Lighting Industry LSZH Cable 80C 600V

UL21143 Lighting Industry LSZH Cable 80C 600V

UL21143 Lighting Industry LSZH Cable 80C 600V

UL21143 Lighting Industry LSZH Cable 80C 600V

UL21143 Lighting Industry LSZH Cable 80C 600V
