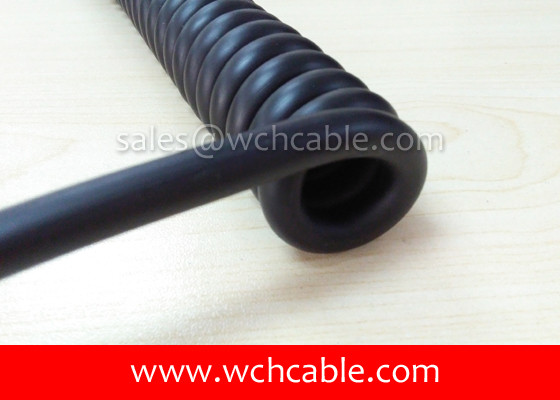

UL Curly Cable, AWM Style UL21529 10AWG 2C VW-1 90°C 300V, PVC / TPE

Product Categories

WCH Cable Industrial Co., Ltd.

Contact Now

Name: UL Curly Cable AWM Style UL21529 10AWG 2C VW1 90C 300V PVC TPE
Brand: WCH Cable
Price: 0.122 USD

Brand Name : WCH Cable

Model Number : UL21529

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 200 pcs

Price : USD0.122 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100,000pcs per week

Delivery Time : 9 days for ready goods

Packaging Details : 200 pcs per box

Style Number : UL21529

Conductor Material : Highly pure copper wire

Rated Temperature : 90°C

Insulation Material : Polyvinyl Chloride PVC

Rated Voltage : 300V

Sheath Material : Thermoplastic Elastomer TPE

Alternative Style : UL20820

Contact Now

UL Curly Cable, AWM Style UL21529 10AWG 2C VW-1 90°C 300V, PVC / TPE

Conductor size: 10AWG

Wire assembly: 2 cores

Insulation color: Black, red

Insulation material: PVC.

Shield: no shield.

Sheath color: Black.

Sheath material: TPE

Sheath thickness: 1.14mm

Flammability: VW-1

Rated temperature: 90°C

Rated voltage: 300V

Conductor resistance: 3.69Ω/km

Insulation resistance: 10mΩ/km

Recommended Use: power control wiring.

Alternative style: UL20820

Remark: color of wires or sheath can be changed according to customer's requirement.

UL Curly Cable, AWM Style UL21529 10AWG 2C VW-1 90°C 300V, PVC / TPE

UL Curly Cable, AWM Style UL21529 10AWG 2C VW-1 90°C 300V, PVC / TPE Images
