UL20567 Lawn Mower Designated Spring Curly Cable

Name: UL20567 Lawn Mower Designated Spring Curly Cable
Brand: WCH Cable
Price: 0.25 USD

Brand Name : WCH Cable

Model Number : UL20567

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 200pcs

Price : USD0.25 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100,000pcs per week

Delivery Time : 9 days for ready goods

Packaging Details : 200pcs per carton

Curly Style : UL20567

Application : Law Mower Connect

Copper : High purity Copper Wire

Rated Temperature : 60 Deg C

Insulation : AWM Compliant Materials

Rated Voltage : 30V

Jacket Material : Polyurethane PUR

Executed Standard : UL758, UL1581

Contact Now

UL20567 Lawn Mower Designated Spring Curly Cable

Standard: Appliance Wiring Material UL758.
Rated Temperature: 60 deg C.
Rated Voltage: 30V.
Flammability: UL VW-1 passed.
Uniform insulation thickness for smooth stripping.
Other approvals: Cul, CSA / Canadian Standards Association.
Application: lawn mower interconnection.

Style Number	Core Quantity	Conductor Size	Conductor Strands	Insulation Thickness	Insulation Diameter	Jacket Thickness	Overall Diameter	Conductor Resistance
Style Number	Core Quantity	AWG	No/mm	mm	mm	mm	mm	Ω/KM
UL20567	2C	30	7/0.100	0.23	0.80	0.76	3.70	381.00
	2C	28	7/0.127	0.23	0.90	0.76	3.90	239.00
	2C	26	7/0.16	0.23	1.00	0.76	4.10	150.00
	2C	24	11/0.16	0.23	1.10	0.76	4.30	94.20
	2C	22	17/0.16	0.23	1.30	0.76	4.70	59.40
	2C	20	21/0.178	0.23	1.50	0.76	5.10	36.70
	2C	18	34/0.178	0.23	1.80	0.76	5.70	23.20
	2C	16	26/0.25	0.23	2.00	0.76	6.30	14.60
	3C	30	7/0.100	0.23	0.80	0.76	3.90	381.00
	3C	28	7/0.127	0.23	0.90	0.76	4.10	239.00
	3C	26	7/0.16	0.23	1.00	0.76	4.30	150.00
	3C	24	11/0.16	0.23	1.10	0.76	4.50	94.20
	3C	22	17/0.16	0.23	1.30	0.76	4.90	59.40
	3C	20	21/0.178	0.23	1.50	0.76	5.40	36.70
	3C	18	34/0.178	0.23	1.80	0.76	6.00	23.20
	4C	30	7/0.100	0.23	0.80	0.76	4.10	381.00
	4C	28	7/0.127	0.23	0.90	0.76	4.30	239.00
	4C	26	7/0.16	0.23	1.00	0.76	4.50	150.00
	4C	24	11/0.16	0.23	1.10	0.76	4.80	94.20
	4C	22	17/0.16	0.23	1.30	0.76	5.30	59.40
	4C	20	21/0.178	0.23	1.50	0.76	5.80	36.70
	5C	30	7/0.100	0.23	0.80	0.76	4.30	381.00
	5C	28	7/0.127	0.23	0.90	0.76	4.60	239.00
	5C	26	7/0.16	0.23	1.00	0.76	4.80	150.00
	5C	24	11/0.16	0.23	1.10	0.76	5.10	94.20
	5C	22	17/0.16	0.23	1.30	0.76	5.60	59.40
	6C	30	7/0.100	0.23	0.80	0.76	4.50	381.00
	6C	28	7/0.127	0.23	0.90	0.76	4.80	239.00
	6C	26	7/0.16	0.23	1.00	0.76	5.10	150.00
	6C	24	11/0.16	0.23	1.10	0.76	5.40	94.20

UL20567 Lawn Mower Designated Spring Curly Cable

Tag: UL20567, curly cable, curly cord

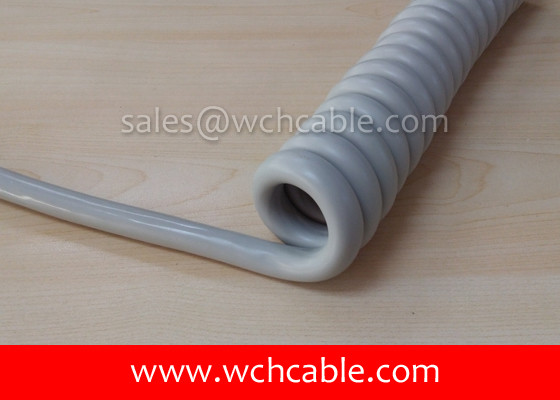

UL20567 Lawn Mower Designated Spring Curly Cable Images
