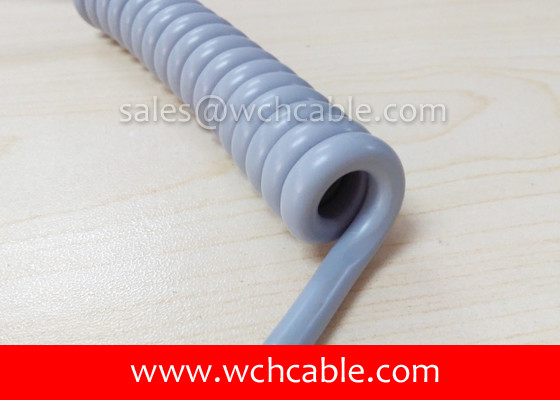

UL21294 Motor Engineered Curly Cable

Brand Name : WCH Cable

Model Number : UL21294

Certification : UL Certificate

Place of Origin : Dongguan, China

MOQ : 200 pcs per box

Price : USD 0.153 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100,000 pcs per week

Delivery Time : 9 days for ready goods

Packaging Details : 200 pcs per box

Style Number : UL21294

Type : Curly Cable

Application : Motor Connect

Feature : Easy working

Conductor Material : Pure Copper Wire Strands

Standard : AWM

Conductor Gauge : 10-32AWG

Rated Voltage : 600V

Contact Now

UL21294 Motor Engineered Curly Cable

Rating: 80 deg C, 600 Vac

Conductor Size: 10-32AWG

Conductor Quantity: 2 ~ 50 cores

Insulation Material: Polypropylene PP

Jacket Material: polyurethane PUR.

Executed Standard: AWM.

Application: motor connect purpose.

Style Number Conductor Quantity Conductor Size Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL21294 3C 28 7/0.127 0.76 2.00 0.381 5.57 239.00
3C 26 7/0.16 0.76 2.10 0.381 5.79 150.00
3C 24 11/0.16 0.76 2.20 0.381 6.00 94.20
3C 22 17/0.16 0.76 2.40 0.381 6.43 59.40
3C 20 21/0.178 0.76 2.50 0.381 6.65 36.70
3C 18 34/0.178 0.76 2.80 0.381 7.30 23.20
3C 16 26/0.254 0.76 3.10 0.381 7.94 14.60
4C 28 7/0.127 0.76 2.00 0.381 6.09 239.00
4C 26 7/0.16 0.76 2.10 0.381 6.33 150.00
4C 24 11/0.16 0.76 2.20 0.381 6.57 94.20
4C 22 17/0.16 0.76 2.40 0.381 7.06 59.40
4C 20 21/0.178 0.76 2.50 0.381 7.30 36.70
4C 18 34/0.178 0.76 2.80 0.381 8.02 23.20
4C 16 26/0.254 0.76 3.10 0.381 8.75 14.60
5C 28 7/0.127 0.76 2.00 0.381 6.66 239.00
5C 26 7/0.16 0.76 2.10 0.381 6.93 150.00
5C 24 11/0.16 0.76 2.20 0.381 7.20 94.20
5C 22 17/0.16 0.76 2.40 0.381 7.74 59.40
5C 20 21/0.178 0.76 2.50 0.381 8.01 36.70
5C 18 34/0.178 0.76 2.80 0.381 8.82 23.20
5C 16 26/0.254 0.76 3.10 0.381 9.64 14.60
6C 28 7/0.127 0.76 2.00 0.381 7.26 239.00
6C 26 7/0.16 0.76 2.10 0.381 7.56 150.00
6C 24 11/0.16 0.76 2.20 0.381 7.86 94.20
6C 22 17/0.16 0.76 2.40 0.381 8.46 59.40
6C 20 21/0.178 0.76 2.50 0.381 8.76 36.70
6C 18 34/0.178 0.76 2.80 0.381 9.66 23.20
6C 16 26/0.254 0.76 3.10 0.381 10.56 14.60
7C 28 7/0.127 0.76 2.00 0.381 7.37 239.00
7C 26 7/0.16 0.76 2.10 0.381 7.68 150.00
7C 24 11/0.16 0.76 2.20 0.381 7.98 94.20
7C 22 17/0.16 0.76 2.40 0.381 8.60 59.40
7C 20 21/0.178 0.76 2.50 0.381 8.90 36.70
7C 18 34/0.178 0.76 2.80 0.381 9.82 23.20
7C 16 26/0.254 0.76 3.10 0.381 10.74 14.60
8C 28 7/0.127 0.76 2.00 0.381 7.80 239.00
8C 26 7/0.16 0.76 2.10 0.381 8.12 150.00
8C 24 11/0.16 0.76 2.20 0.381 8.45 94.20
8C 22 17/0.16 0.76 2.40 0.381 9.10 59.40
8C 20 21/0.178 0.76 2.50 0.381 9.43 36.70
8C 18 34/0.178 0.76 2.80 0.381 10.41 23.20
9C 28 7/0.127 0.76 2.00 0.381 8.19 239.00
9C 26 7/0.16 0.76 2.10 0.381 8.54 150.00
9C 24 11/0.16 0.76 2.20 0.381 8.89 94.20
9C 22 17/0.16 0.76 2.40 0.381 9.58 59.40
9C 20 21/0.178 0.76 2.50 0.381 9.92 36.70

UL21294 Motor Engineered Curly Cable
