UL4478

Brand Name : WCH Cable

Model Number : UL4478

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 1220 meters

Price : 0.10 per meter

Payment Terms : D/P, L/C, D/A, D/A, T/T, Western Union, MoneyGram

Supply Ability : 500,000 meters per month

Delivery Time : 9 days for ready goods

Packaging Details : 152.5 meters per reel

Approval Style : UL4478

Conductor Material : High purity copper wire strands

Rated Temperature : 105 deg C

Insulation Material : Irradiated Polyethylene XLPE

Rated Voltage : 300V

Conductor Size : 26, 28AWG

Contact Now

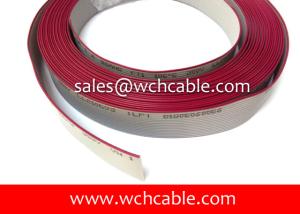

UL4478 Ribbon Cable

Style Description: UL4478, Flat Cable, Flat Ribbon Cable, XLPE Flat Cable

Rating: 105 deg C, 300 Vac, Horizontal flame.

Insulation: Extruded XLPE, 9 mils minimum average thickness, 8 mils minimum thickness at any point after rip.

Standard: Appliance Wiring Material UL 758.

Application: Internal wiring of appliances.

WCH Cable - Professional Manufacturer of Ribbon Cable, UL Cord, Cable Assembly

Parameters of UL4478 - 26AWG:

Approval Style Number Conductor Pitch Cores Insulation Thickness Overall Diameter Conductor Resistance
AWG No./mm mm NO mm mm Ω/KM
UL4478 26 7/0.16 2.54 2P-40P 0.23 1.05 150.00
26 7/0.16 2.00 2P-50P 0.23 1.05 150.00

Parameters of UL4478 - 28AWG:

Approval Style Number Conductor Pitch Cores Insulation Thickness Overall Diameter Conductor Resistance
AWG No./mm mm NO mm mm Ω/KM
UL4478 28 7/0.127 2.54 9 0.23 0.9×11.43 150.00
28 7/0.127 2.54 10 0.23 0.9×12.7 150.00
28 7/0.127 2.54 14 0.23 0.9×17.78 150.00
28 7/0.127 2.54 15 0.23 0.9×19.05 150.00
28 7/0.127 2.54 16 0.23 0.9×20.32 150.00
28 7/0.127 2.54 20 0.23 0.9×25.4 150.00
28 7/0.127 2.54 25 0.23 0.9×31.75 150.00
28 7/0.127 2.54 26 0.23 0.9×33.02 150.00
28 7/0.127 2.54 30 0.23 0.9×38.1 150.00
28 7/0.127 2.54 34 0.23 0.9×43.18 150.00
28 7/0.127 2.54 36 0.23 0.9×45.72 150.00
28 7/0.127 2.54 40 0.23 0.9×50.8 150.00
28 7/0.127 2.54 50 0.23 0.9×63.5 150.00
28 7/0.127 2.54 60 0.23 0.9×76.2 150.00
